São Paulo Metro Line 4 (Yellow Line)

Automation System for Electrical Subsystems

Altus was contracted to develop the automation project for the electrical systems of the metro stations and the Vital Brasil Substation, integrating Sao Paulo Metro Line 4.

Control Solution for Electrical Subsystems

Altus took full responsibility for the development and installation of the automation system covering all electrical subsystems of the project.

The scope included the 88 kV High Voltage System (SDY), 22 kV Medium Voltage System (SDM), 1500 V DC Traction System (SDT), the Digital Command, Control, and Data Acquisition System (SDCCAD), Low Voltage Systems, Escalator Systems, and the Control and Command Panels (PCC).

The implemented architecture enables centralized supervision, secure remote operation, and real-time monitoring of critical electrical assets. By integrating protection, control, and data acquisition into a unified automation platform, the solution ensures operational continuity, rapid fault detection, and enhanced safety across the entire infrastructure.

This comprehensive approach reinforces system reliability, optimizes maintenance strategies, and supports the high availability requirements of large-scale urban transportation networks.

Predictive maintenance

Consolidated and centralized data for the maintenance of the electrical subsystems

Diagnostics

Streamlined diagnostics that make it easier to identify issues, improving equipment reliability

Energy Efficiency

Lower operational costs through automated control, reducing the need for multiple operators per shift

Informações centralizadas

The system also enhances the centralization of operational data, making processes more efficient

Control Solution for the Vital Brasil Substation

The panels installed by Altus at the Vital Brasil Substation are responsible for managing the SDY (High Voltage System), SDM (Medium Voltage System), and SDCCAD (Low Voltage System).

The SDY panel handles control of the substation's input lines, automatically monitoring and operating disconnectors and circuit breakers within the bays. Communication is facilitated via the DNP 3.0 protocol, which also monitors protections for lines, transformers, and breakers through the protection relays.

In the SDM, equipment is responsible for communicating with Areva protection relays using DNP 3.0, collecting critical protection data. This panel manages the control of medium-voltage circuit breakers and disconnectors.

The SDCCAD oversees the low-voltage power supply, covering lighting panels, elevators, escalators, ventilation systems, auxiliary services, and the traction system.

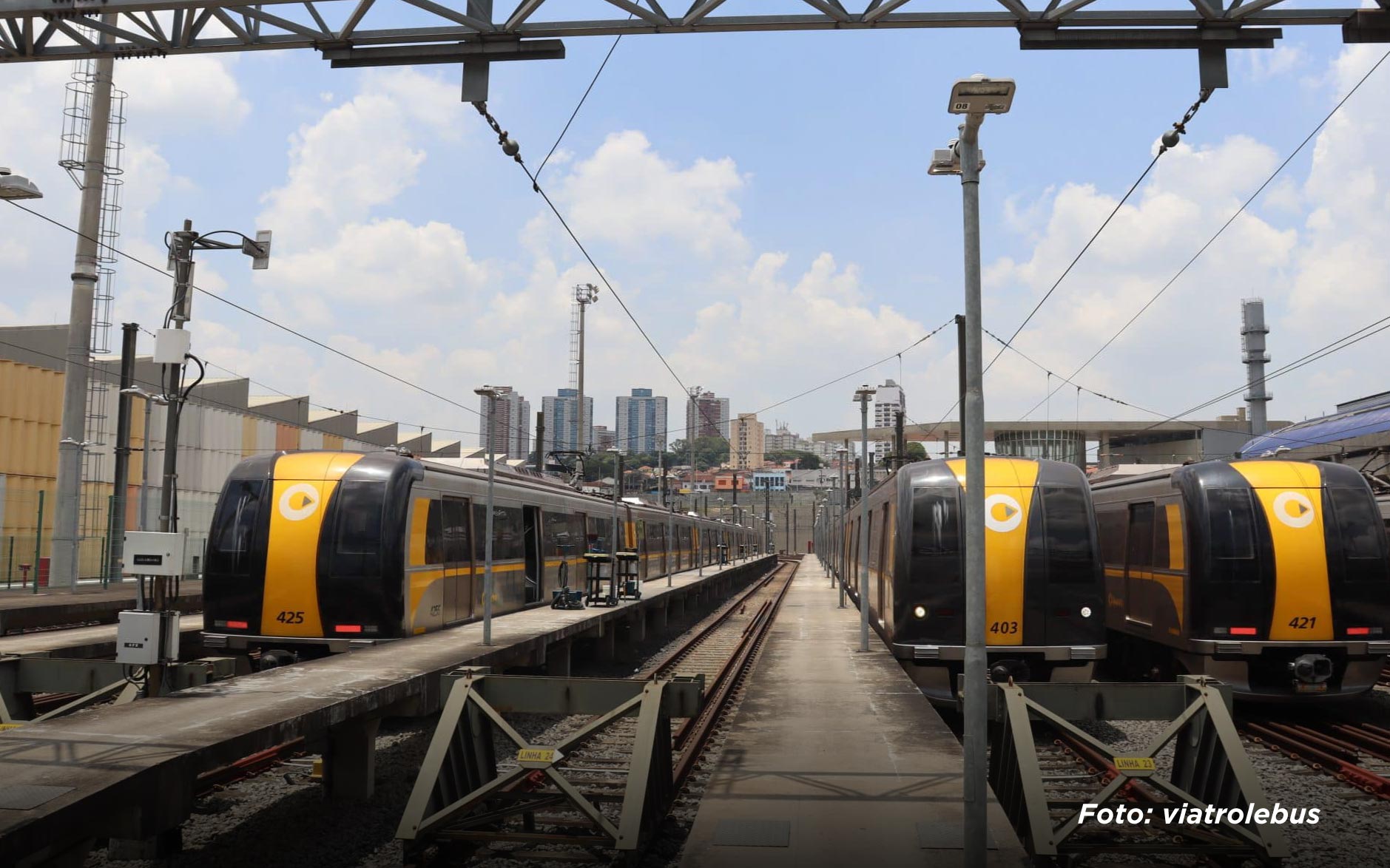

1500 V DC Traction Digital System

The system includes a set of non-redundant programmable controllers with input and output modules housed in an electrical panel. This setup controls and monitors key equipment such as circuit breakers, disconnectors, diode supervision, local command switches, temperature, and electrical variables.

Commands are executed via CBO-type digital outputs (“Check Before Operate”) and SOE-type digital inputs, allowing for event recording with millisecond precision. The PLC connects with protection relays through a network, gathering event data and electrical measurements.
